Description

Product:

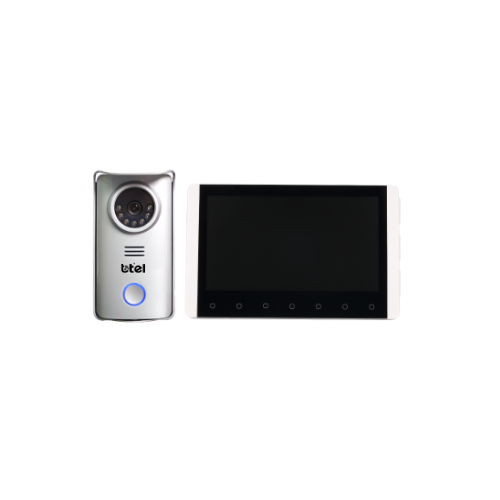

BT-60 7-inch Wireless Video Door phone Intercom

Features:

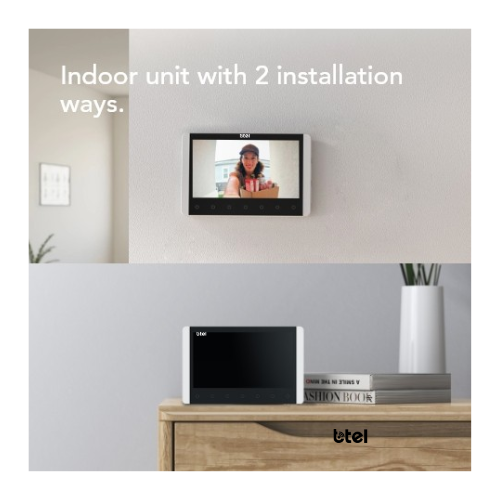

• Indoor Monitor: 7-inch colored TFT LCD screen, 800×480 resolution

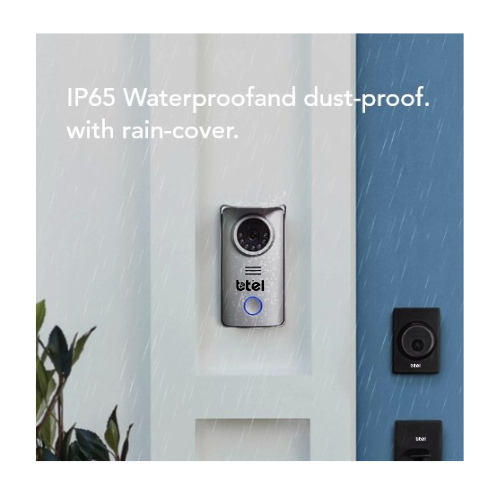

• Outdoor Station: 480TVL, 75° viewing angle

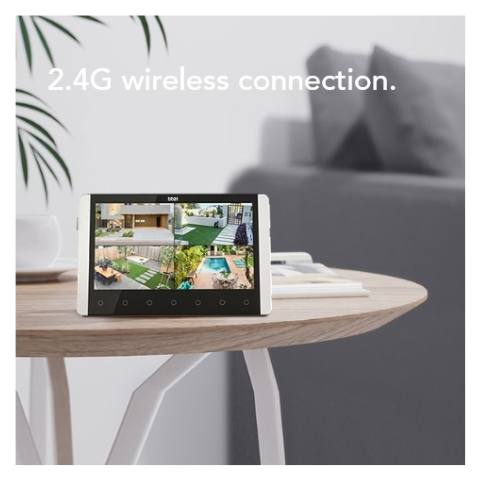

• Communication: 2.4GHz digital wireless, Full Duplex communication, 16Khz sampling rate

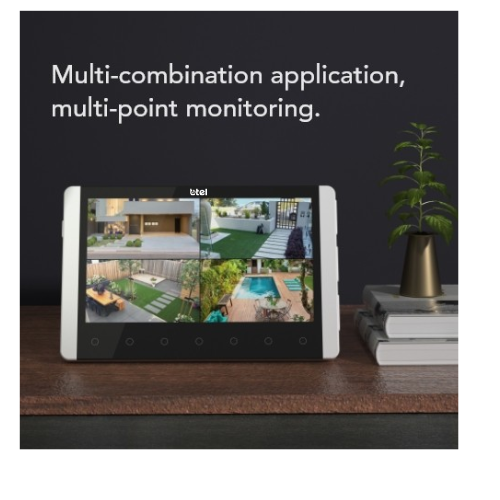

• Video: VGA video at 25fps with 2-4Mbps, Support 4 PiP (picture-in-picture) display

• Power Supply:
  • Indoor monitor: 5.0V/2.0A
  • Outdoor station: 13.5V/1.5A
  • CCTV Camera: 5V/1A

• Internal Batteries (Optional):
  • Indoor Monitor: 3.7V/2600mAh
  • Outdoor Station: 3.7V/2600mAh

• Memory Card (Optional): Max 32GB TF card
• Working Temperature: -20°C~50°C

Materials:

• Indoor: Plastic
• Outdoor: Plastic spray paint with UV

Connectivity:

• Communication Distance: Max 300 meters open distance
• Transmission Power: 16dbm-20dbm

Power Consumption:

• Working Current:
  • Indoor monitor: 750mA
  • Outdoor station: 250mA
  • CCTV Camera: 250mA
